APPLICATION

Automatic high pressure groups coupled with selfpriming jet pumps. They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.

Features

OPERATING CONDITIONS
- Liquid temperature up to 35°C
- Ambient temperature up to 40°C
- Total suction lift up to 8 mt.
- Continuous duty

MOTOR
- Two-Pole induction motor
(n = 2850 min-1)
- Insulation Class F
- Protection IP 44

COMPONENTS
- Butyl membrane tank
- Flexible hose with connection
- Adjusted switch on/off pressure 1,6÷3,2 barwith cable
- Pressure gauge
- Brass connection

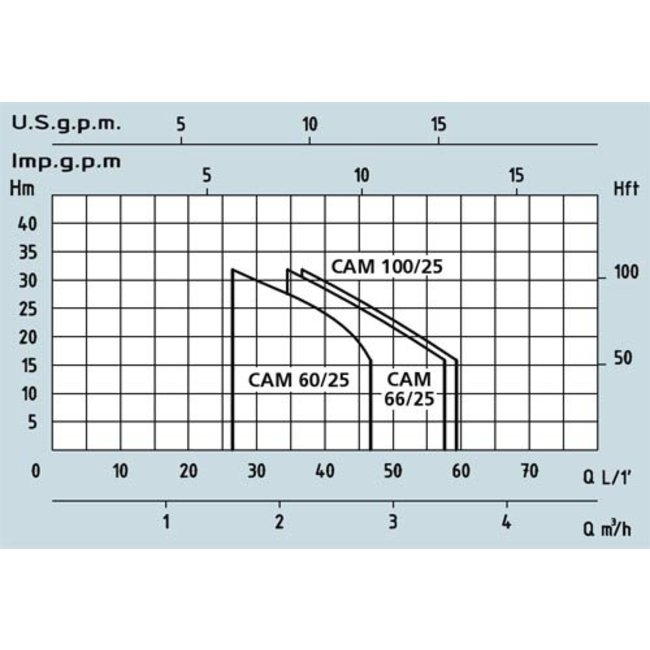

Technical data
Capacity:          m3/h = 3.6 - l/m = 60
Total head :      H(m) = 45
Power:             kW = 1,1
Voltage:           230V-50Hz
