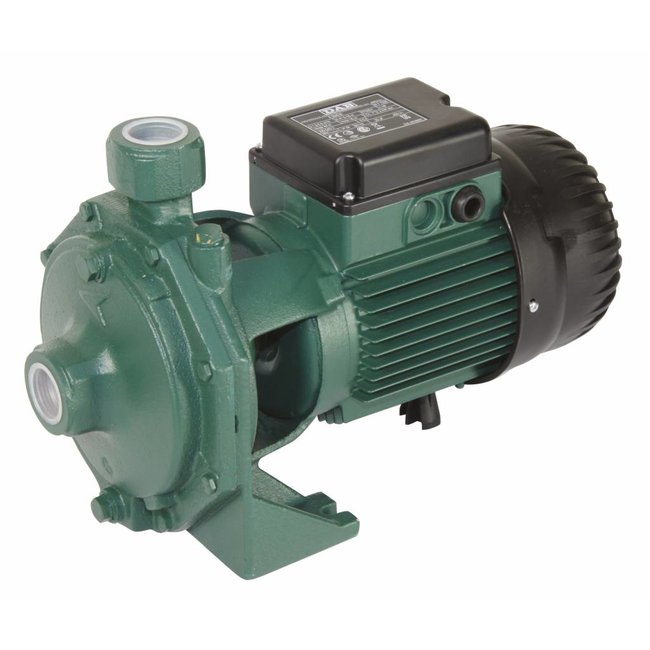

Twin-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels.
Suitable for sprinkler systems and other general water supply uses.
Operating range: from 1,2 to 30 m3/h with head up
Suitable for sprinkler systems and other general water supply uses.
Operating range: from 1,2 to 30 m3/h with head up
5 tot 10 werkdagen/voor de juiste levertermijn kan u deze steeds aanvragen
Ryva Watersolutions.
-
VerzendingGratis verzending vanaf 150 binnen de Benelux!
-
VoorraadEigen grote voorraad!
-
ErvaringMeer dan 35 jaar ervaring!
-
Fysieke winkelMoeite met kiezen? kom gerust eens langs!
Beschrijving
Twin-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels.
Suitable for sprinkler systems and other general water supply uses.
Operating range: from 1,2 to 30 m3/h with head up to 97 metres.
Maximum operating pressure: K 35/40, K 35/100, K 40/100 :6 bar (600 kPa). K 45/50, K 55/50 :8 bar (800 kPa). K 55/100, K 66/100 :10 bar (1000 kPa). K 90/100, K 70/300, K 80/300, K 70/400, K 80/400 :12 bar (1200 kPa).
Installation: fixed, horizontal or vertical position, provided that the motor is always above the pump.
Liquid temperature range: K 35/40, K 45/50, K 35/100, K 40/100, K 55/100: from -10 °C to +50 °C.
K 55/50, K 66/100, K 90/100, K 70/300, K 80/300, K 70/400, K 80/400: from -15 °C to +110 °C.
| Voeding 50 Hz | 3x230 - 400 V~ |
| P1 max. in kW | 1.96 |
| P2 nominal in kW | 1.1 |
| Vermogen in pk (HP) | 1.5 |
| Stroom in A | 7.2 - 4 |
| Debiet in m3/h | 6 |
| Debiet in l/min. | 100 |
| Druk in BAR | 5.1 max. |
| Aansluiting aanzuig | 5/4" F |
| Aansluiting wegvoer | 4/4" F |
| Gewicht in kg | 22.5 |
| Zelfaanzuigend | Neen |
| Inhoud drukvat | Geen |
| Aantal waaiers | 2 |
| Droogloop beveiliging | Neen |
