Beoordeel 100DV-MM 1" buitendraad - max. 10 bar en 6,8 m3/h

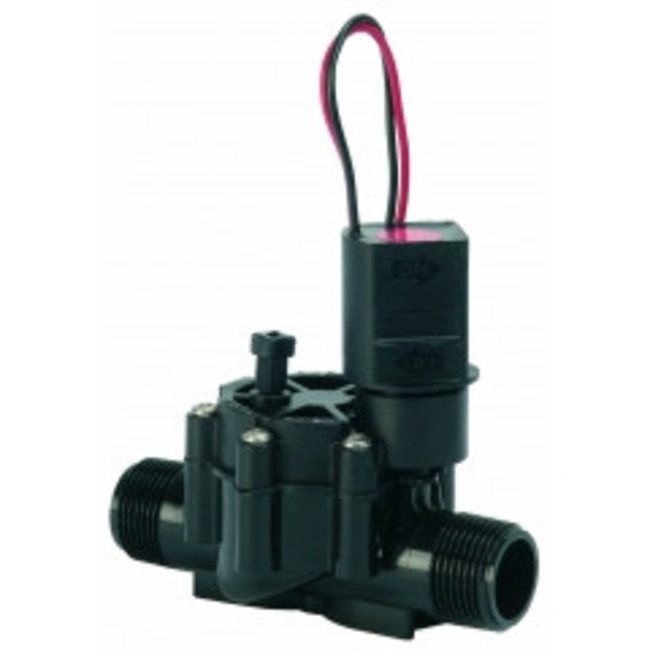

100DV-MM 1" buitendraad - max. 10 bar en 6,8 m3/h

€35,30 €29,89
niet op voorraad
5 tot 10 werkdagen/voor de juiste levertermijn kan u deze steeds aanvragen
Ryva Watersolutions.
  • Verzending
    Gratis verzending vanaf 150 binnen de Benelux!
  • Voorraad
    Eigen grote voorraad!
  • Ervaring
    Meer dan 35 jaar ervaring!
  • Fysieke winkel
    Moeite met kiezen? kom gerust eens langs!
Beschrijving
Features:

  • Ease of Service
    • Flow control mechanism on 100-dvf model.
    • Manual On/Off control with 1/4-turn of solenoid.
    • Internal bleed for spray-free manual operation.
    • External bleed screw to manually flush system of dirt and debris during installation and system start-up.
  • Versatility
    • Globe (DV, DVF and DV-MM models) configurations.
    • Available in male x male configuration: 1” BSP 100-DV-MM, 1” BSP 100-DV-MM-9V.
    • Also available in 9V solenoid configuration: 1” BSP 100-DV-9V, 1” BSP 100-DV-MM-9V.
    • Operates in low-flow and Xerigation® applications when the rBy filter is installed upstream.
  • Reliability
    • Rugged PVC body.
    • Stainless steel phillips head screws.
Specifications:

Flow: 075-DV: 0.24 to 4,5 m3/h
100-DV, 100-DVF and 100-DV-MM: 0.24 to 9.0 m3/h
Note : DV male x male not recommended for flows exceeding 6,8 m3/h
Pressure: 1 to 10.4 bar (23° C) temperature: up to 43°C

ELECTRICAL SPECIFICATIONS
Solenoid: 24 vVAC - 50 Hz
Inrush current: 0.30 A (7.2 VA)
Holding current: 0.19 A (4.6 VA)
Not for use with decoder system

Dimensions:

075-DV and 100-DV:
Height: 11.4 cm
Length: 11.1 cm
Width: 8.4 cm

100-DVF:
Height: 14.2 cm
Length: 11.1 cm
Width: 8.4 cm

100-dv-mm:
Height: 11.4 cm
Length: 13.6 cm
Width: 8.4 cm
