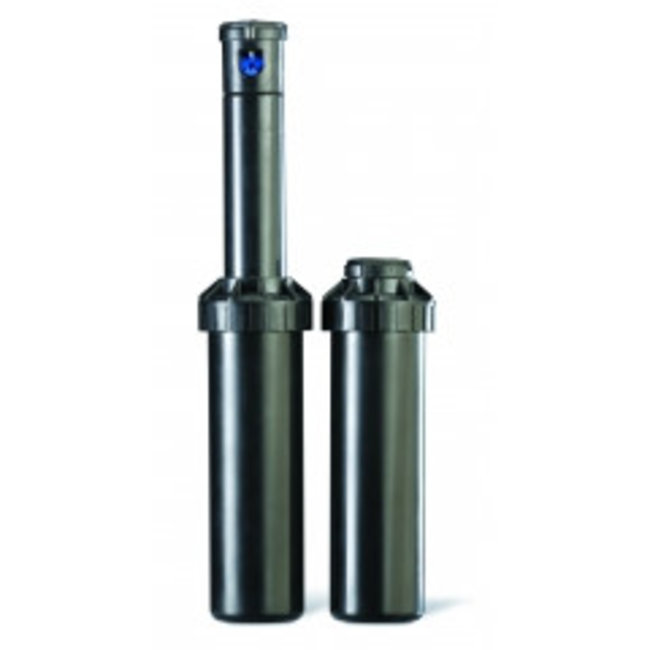

3504-PC (sector) 10cm

- Turbinesproeier met ½” binnendraad en een sproeibereik van 4,6 tot 10,7 mtr.
- Sector en volle cirkel in een model.
- Sector makkelijk instelbaar (400 t/m 3600) met een simpel schroevendraaiertje.
- Pop-up hoogte 10 cm.
- Werkt bij vrij lage drukken en heeft een minimaal waterverbruik.
- Standaard voorzien van rubber kap.
- Nozzle 2.0 is voorgemonteerd.
- 5 regengordijn sproeimondjes worden gratis bijgeleverd.

Features:

• Rain Curtain™ Nozzles Technology

- Attached nozzle tree of six Rain Curtain™ Nozzles provides:
Large droplets for consistent performance
Effective close-in watering
Even distribution over the entire radius

• Installation & Maintenance

- Top-adjust arc adjustment requiring only a flat bladed screwdriver
- Radius adjustment screw allows up to 35% radius reduction without changing nozzles
- Quick Check Arc/Fast Forward
- Self-adjusting stator does not require replacement when changing nozzles
- Easily removable filter screen
- Nozzle removal feature

• Design Solutions

- The 3500 Series Rotor is available in 4” and
SAM ™ models
- Optional Seal-A-Matic™ (SAM™) check valve holds up to 2,1 m of elevation change, to prevent puddling and erosion caused by low head drainage
- 40-360° Part-circle arc rotation and reversing full-circle rotation in one

• Durability

- Rubber cover and self-flushing arc adjustment screw reduce debris intrusion and improve reliability
- W ater-lubricated gear-drive design for durable, reliable operation
- Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction

 Specifications:

Radius: 4.6-10.7 m
Radius with radius reduction screw: down to 2.9 m
Pressure: 1.7-3.8 bar
Flow Rate: 0.12-1.04 m3/h
1/2” (15/21) female bottom threaded inlet
Arc adjustment: 40°-360°

Dimensions:

Pop-up height: 10.2 cm
Overall body height: 16.8 cm
Exposed surface diameter: 2.9 cm
Note: pop-up height measured from cover to center of nozzle. Overall body height is measured popped down

Performance chart:
