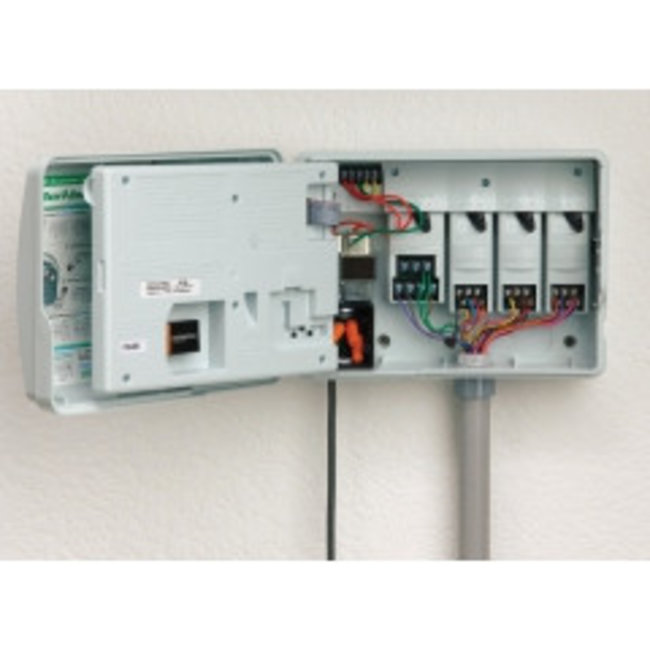

4 station expandable to 22 stations with optional modules
Number of programs: 4
Automatic starts: 6 per day per program for up to 24 start time
Programming Schedules:
Permanent day off
Station Timing: 1 minute to 6 hours for all station
Delay between stations from 1 sec to 9 hours
Seasonal Adjust: 5% to 200%
Max operating temperature: 65°c
ELECTRICAL SPECIFICATIONS
It means that you have there is no module installed for the station. For example, Station 14 would be located in the 2nd bay. Bay 1 is for stations 5-10. Bay 2 is for stations 11-16. So, you either have a 3 station module installed in Bay 2 or no module at all.
It means that you have a programming error. Either there are: no start times, no run times, or no watering days selected. The controller ships from the factory with the following settings:
1 Start time of 8:00 AM, 10 minute run time for the first 4 stations (base module) and all days set to ON.
It means that you have an electrical error. Pay attention to the DISPLAY screen which will scroll a message across it indicating what error condition exists. The controller will automatically skip the affected station and proceed to the next station. To clear an alert condition, make sure the dial is in the AUTO and press and hold the right arrow key for 3 seconds. (Arrow with teardrop shape)
Turn dial to the Run Manual Program position and press and hold the right arrow key (with teardrop shape) OR
A: With dial in the AUTO RUN position, press and hold the right arrow key (with teardrop shape) for 3 seconds. The program that has the letter shown on the DISPLAY will run.
Turn the dial to the Run Manual Station position. Use the arrow keys to choosestation. Use – and + keys to adjust the run time. Press and hold the right arrow (with teardrop shape) for 3 seconds.
Start/Run Times, watering days, Rain Sensor status is returned to Bypass, Delay watering status is reset to 0 days, Seasonal Adjust % is reset to 100% of program values.
Date/Time is the only setting not reset to the factory ship settings.
Yes, 3 station modules are compatible with the new ESPME.
No. All Date/Time information is backed up internally on a long life lithium battery.
The programs and settings are backed upon internal memory. So, no battery is required.
No.
It means that you have there is no module installed for the station. For example, Station 14 would be located in the 2nd bay. Bay 1 is for stations 5-10. Bay 2 is for stations 11-16. So, you either have a 3 station module installed in Bay 2 or no module at all.
It means that you have an electrical error. Pay attention to the DISPLAY screen which will scroll a message across it indicating what error condition exists. The controller will automatically skip the affected station and proceed to the next station. To clear an alert condition, make sure the dial is in the AUTO and press and hold the right arrow key for 3 seconds. (Arrow with teardrop shape)
Turn dial to the Run Manual Program position and press and hold the right arrow key (with teardrop shape) OR
A: With dial in the AUTO RUN position, press and hold the right arrow key (with teardrop shape) for 3 seconds. The program that has the letter shown on the DISPLAY will run.
Turn the dial to the Run Manual Station position. Use the arrow keys to choosestation. Use – and + keys to adjust the run time. Press and hold the right arrow (with teardrop shape) for 3 seconds.
Start/Run Times, watering days, Rain Sensor status is returned to Bypass, Delay watering status is reset to 0 days, Seasonal Adjust % is reset to 100% of program values.
Date/Time is the only setting not reset to the factory ship settings.
Yes, 3 station modules are compatible with the new ESPME.
No.
No. All Date/Time information is backed up internally on a long life lithium battery.
The programs and settings are backed upon internal memory. So, no battery is required.
It means that you have there is no module installed for the station. For example, Station 14 would be located in the 2nd bay. Bay 1 is for stations 5-10. Bay 2 is for stations 11-16. So, you either have a 3 station module installed in Bay 2 or no module at all.
It means that you have an electrical error. Pay attention to the DISPLAY screen which will scroll a message across it indicating what error condition exists. The controller will automatically skip the affected station and proceed to the next station. To clear an alert condition, make sure the dial is in the AUTO and press and hold the right arrow key for 3 seconds. (Arrow with teardrop shape)
Turn dial to the Run Manual Program position and press and hold the right arrow key (with teardrop shape) OR
A: With dial in the AUTO RUN position, press and hold the right arrow key (with teardrop shape) for 3 seconds. The program that has the letter shown on the DISPLAY will run.
Turn the dial to the Run Manual Station position. Use the arrow keys to choosestation. Use – and + keys to adjust the run time. Press and hold the right arrow (with teardrop shape) for 3 seconds.
Start/Run Times, watering days, Rain Sensor status is returned to Bypass, Delay watering status is reset to 0 days, Seasonal Adjust % is reset to 100% of program values.
Date/Time is the only setting not reset to the factory ship settings.
Yes, 3 station modules are compatible with the new ESPME.
It means that you have there is no module installed for the station. For example, Station 14 would be located in the 2nd bay. Bay 1 is for stations 5-10. Bay 2 is for stations 11-16. So, you either have a 3 station module installed in Bay 2 or no module at all.
It means that you have an electrical error. Pay attention to the DISPLAY screen which will scroll a message across it indicating what error condition exists. The controller will automatically skip the affected station and proceed to the next station. To clear an alert condition, make sure the dial is in the AUTO and press and hold the right arrow key for 3 seconds. (Arrow with teardrop shape)
Turn dial to the Run Manual Program position and press and hold the right arrow key (with teardrop shape) OR
A: With dial in the AUTO RUN position, press and hold the right arrow key (with teardrop shape) for 3 seconds. The program that has the letter shown on the DISPLAY will run.
Turn the dial to the Run Manual Station position. Use the arrow keys to choosestation. Use – and + keys to adjust the run time. Press and hold the right arrow (with teardrop shape) for 3 seconds.
Start/Run Times, watering days, Rain Sensor status is returned to Bypass, Delay watering status is reset to 0 days, Seasonal Adjust % is reset to 100% of program values.
Date/Time is the only setting not reset to the factory ship settings.
Yes, 3 station modules are compatible with the new ESPME.
No.
No. All Date/Time information is backed up internally on a long life lithium battery.
The programs and settings are backed upon internal memory. So, no battery is required.
No.
No. All Date/Time information is backed up internally on a long life lithium battery.
The programs and settings are backed upon internal memory. So, no battery is required.
No.
No. All Date/Time information is backed up internally on a long life lithium battery.
The programs and settings are backed upon internal memory. So, no battery is required.
