NKM-G & NKP-G serie



 Technical sheet NKM-G & NKP-G

Standardised centrifugal monobloc electric pumps with coupling, designed for a wide range of applications, such as:
water supply, hot water circulation for the heating system, circulation of cold water for air conditioning and refrigeration systems, transfer of liquids in agricultural, horticultural, and industrial environments, installation of pumping assemblies.

Operating range: from 1 to 460 m3/h with head of up to 96 metres.

Maximum operating pressure: 16 bar - 1600 kPa (for DN 200 max 10 bar).

Installation: normally in horizontal or vertical position, provided that the motor is always above the pump.

Liquid temperature range: from -10°C to +140°C.



KDN serie

 Technical sheet KDN

Standardised centrifugal single-stage pumps, designed for a wide range of applications, such as:
Water supply. Hot water circulation for the heating system. Circulation of cold water for air conditioning and refrigeration systems.
Transfer of liquids in agricultural, horticultural, and industrial environments. Installation of pumping assemblies.
They can be coupled, using an elastic joint (standard or spacer), to a 2-pole or 4-pole electric motor, and installed on a formed metal sheet base in accordance with UNI EN 23661.

Operating range: flow up to 470 m3/h, head up to 143 metres.

Maximum operating pressure: 16 bar - 1600 kPa (for DN 200 max 10 bar).

Installation: normally in the horizontal position.

Pumped liquid temperature range: from -10°C to +140°C.

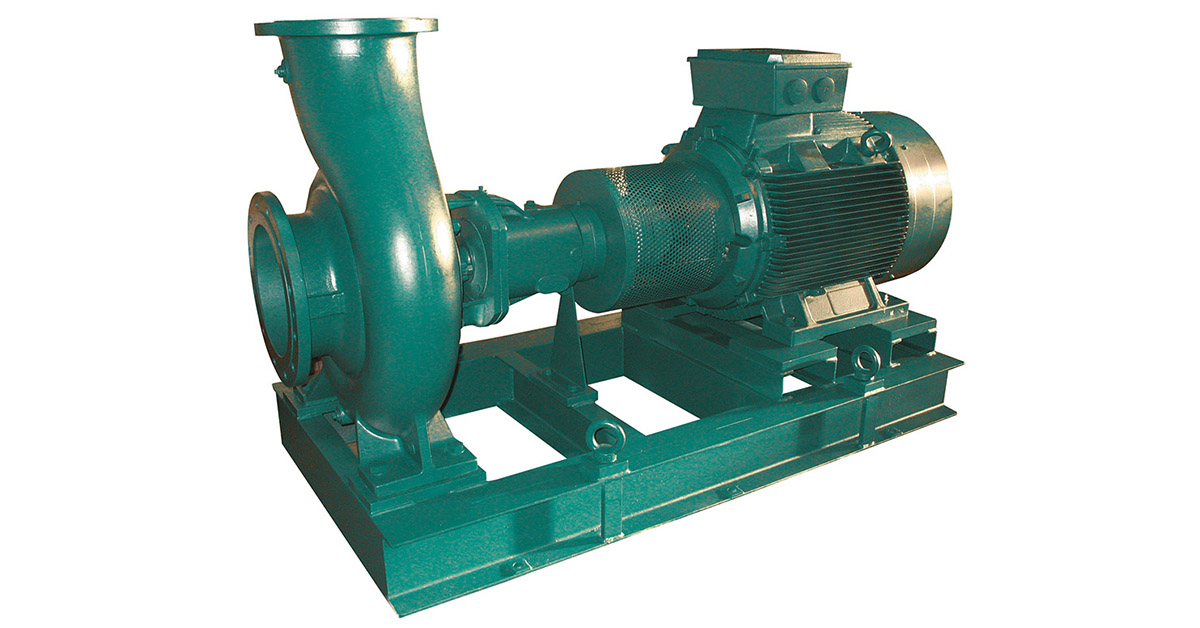

KDN oversize serie

 KDN oversize

 Technical sheet KDN oversize

Standardised centrifugal single-stage pumps, designed for a wide range of applications, such as: water supply, hot water circulation for the heating system, circulation of cold water for air conditioning and refrigeration systems, transfer of liquids in agricultural, horticultural, and industrial environments, installation of pumping assemblies.

Operating range: from 1 to 470 m3/h with head up to 143 metres.

Maximum operating pressure: 16 bar - 1600 kPa (for DN 200 max 10 bar).

Installation: normally in the horizontal position.

Liquid temperature range: from -10°C to +140°C.
