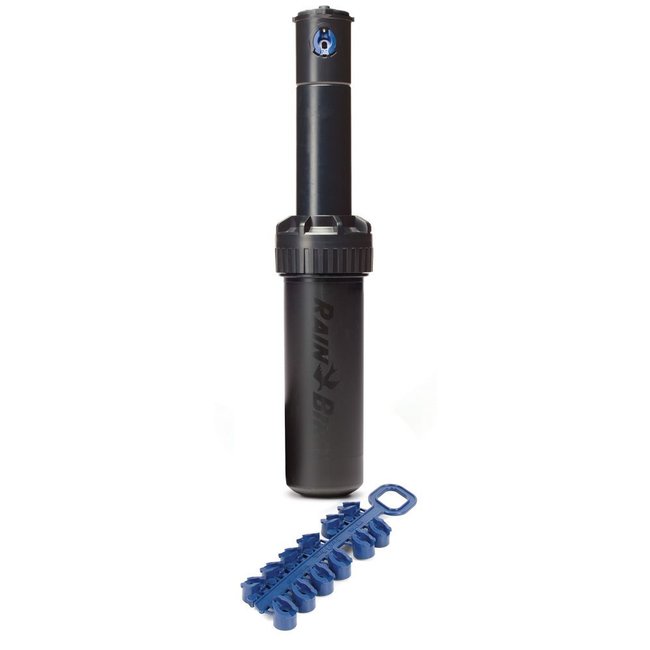

5004 Plus-PC (sector) 10cm

- Turbinesproeier met ¾” binnendraad en een stevige rubbere deksel.

- Sproeier is instelbaar van 40° t/m 360° draaicirkel en heeft een sproeibereik van ± 7,6 mtr. (ø 15,2) t/m 15,2 mtr. (ø 30,4 mtr.).

- Sectorafstelling is snel en eenvoudig met slechts een gewone schroevendraaier.

- Nozzle 3 is voorgemonteerd.

Rain Curtain™ Nozzle Technology

• Rain Curtain™ Nozzles standard on all 5000/5000 Plus rotors
• Large water droplets for greater wind resistance
• Effective close-in watering
• Even distribution over the entire radius
• Tree of nozzles including four low angle (Angle of Trajectory 10°) and eight standard angle Rain Curtain™ Nozzles (Angle of Trajectory 25°) provides 7,6 to 15,2 m distance of throw
• Self-aligning nozzles

Installation & Maintenance

• Slip clutch mechanism for quick adjustment on installation
• Faster maintenance with a self-cleaning arc adjustment screw
• The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation

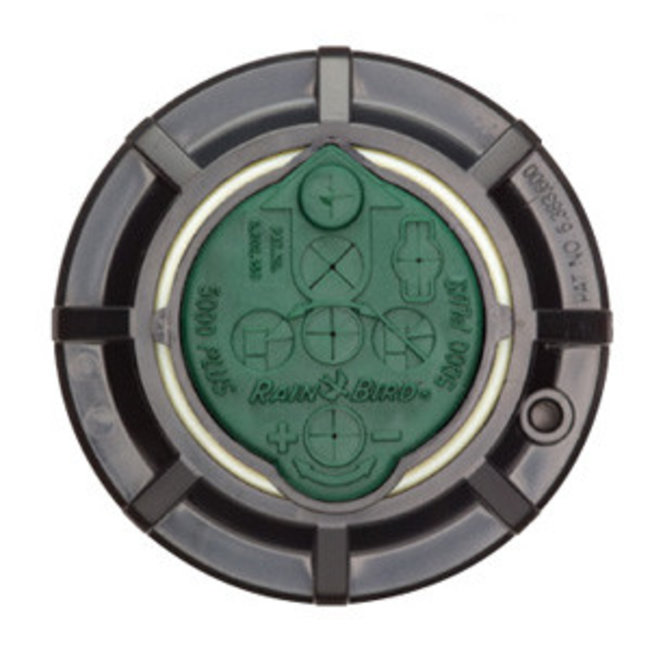

• Top-adjust arc adjustment requiring only a flat-blade screwdrive
• Radius adjustment screw allows up to 25% radius reduction without changing nozzles

Design Solutions

• Optional on 5000 Plus Series :
• Stainless Steel riser sleeve on SS models
• Seal-A-Matic (SAM™ ) check valve holds up to 2,1m of elevation change

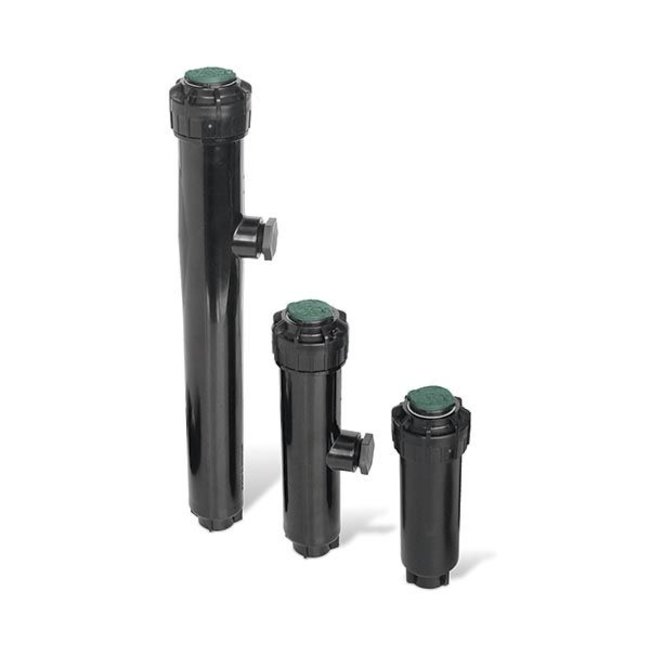

• The 5000 Plus Rotors is available in 4”, 6”, 12”, and Stainless Steel
• True 4” (10 cm), 6” (15,2 cm) and 12” (30,5 cm) pop-up (measured from the cover to the nozzle)
• 40 - 360° arc rotation and reversing full circle rotation in one. (A non-reversing full circle only unit is also available
• MPR nozzle set simplifies design and installation by providing matched precipitation from 7,6 to 10,7 m
• Simplify the design process. Nozzles with various arcs and radii can be mixed in the same zone by using MPR Nozzles

Durability

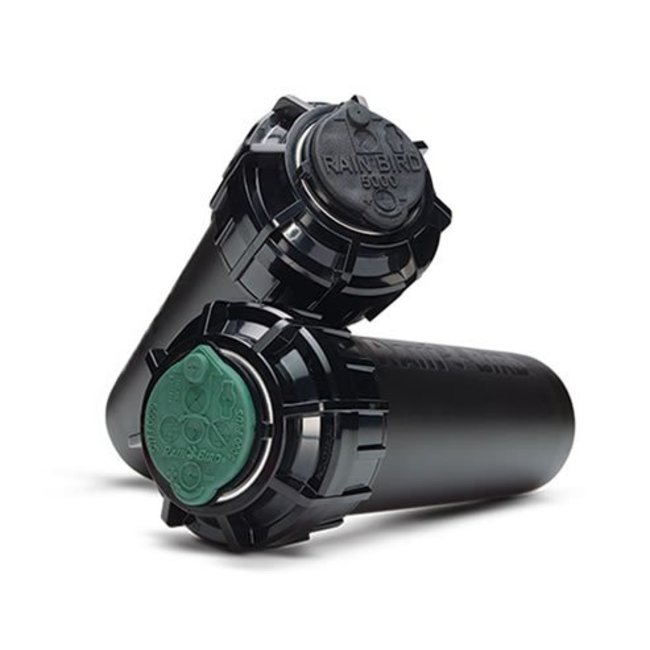

• Standard rubber cover for extra protection. 5000 Plus features a green cover while the 5000 features a black cover
• Heavy-duty cover assembly for extra durability in residential or commercial applications
• Heavy-duty retract spring assures positive pop-down
• Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
• Additional O-rings and seals for extra protection in “gritty” water
• Five-year trade warranty
